Dear Geant4 experts,
Hello,
I’m Hyeonseok Do, and I’m developing a Si detector simulation using Geant4.
I’ve just checked the characteristic X-ray energy of Si using Geant4.
Theoretically, I found the Ka of silicon is 1.74keV.

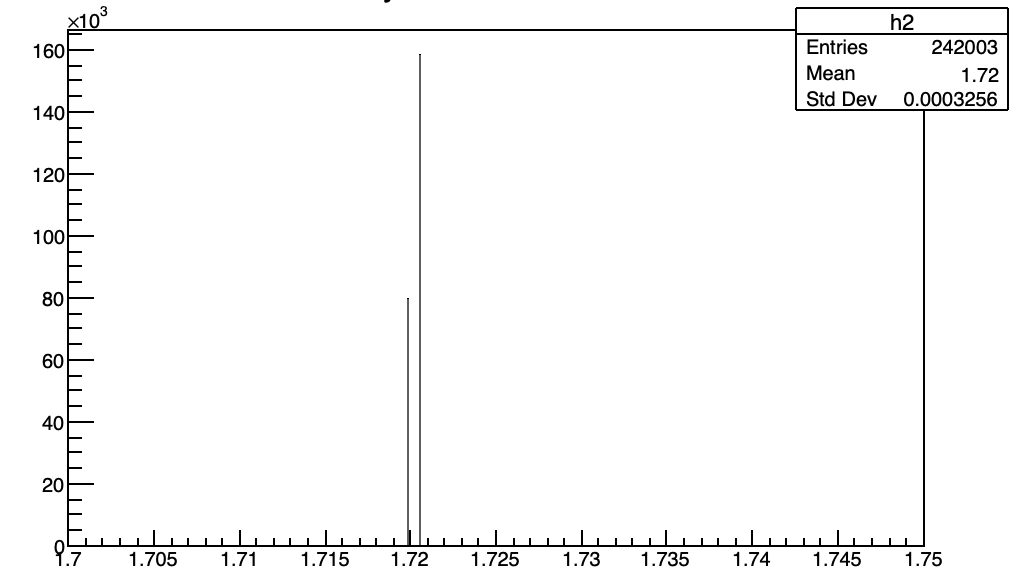

But when I checked it using Geant4, the value was 1.72keV.
It’s just a little difference, but do you know the reason?
I just collected all secondary particles and got the energy directly.
{
const auto* secondaries = step->GetSecondaryInCurrentStep();
for (const auto* sec : *secondaries) {
if (!sec) continue;
if (sec->GetDefinition() != G4Gamma::GammaDefinition()) continue;
const G4double EkeV = sec->GetKineticEnergy() / keV;
fRunAction->RecordSiSecondaryGammaEnergy(EkeV);
const G4VProcess* creator = sec->GetCreatorProcess();
const G4String creatorName = creator ? creator->GetProcessName() : "";
// bremsstrahlung gamma
if (creatorName == "eBrem") {
fRunAction->RecordSiSecondaryGammaBremEnergy(EkeV);
}
// Si characteristic X-ray candidate
if (procName == "phot" && EkeV > 0.0 && EkeV < 2.0) {
fRunAction->RecordSiSecondaryGammaCharCandEnergy(EkeV);
}
}
}
But I cannot see anything in the 1.74keV bin.
Thank you for your help in advance.
Have a nice day.
Best regards,
Hyeonseok.
