COMMAND NOT FOUND <<?xml version='1.0' encoding='ASCII'?>> *****

_Geant4 Version: 10.4.3
_Operating System: macOS Sonoma 14.5
_Compiler/Version: Apple clang 15.0
_CMake Version: 3.25.1

I’m building my geometry through a GDML file. I’ve already tested the GDML geometry with the gdml/G01 example and with the ROOT visualizer.
However, when running the main code this is the console output:

Available UI session types: [ GAG, tcsh, csh ]
G4GDML: Reading 'CriostatoTest0606.gdml'...
G4GDML: VALIDATION ERROR! ID attribute 'G4_BRASS' is referenced but was never declared at line: 18539
G4GDML: VALIDATION ERROR! ID attribute 'G4_Galactic' is referenced but was never declared at line: 18539
G4GDML: VALIDATION ERROR! ID attribute 'G4_Al' is referenced but was never declared at line: 18539
G4GDML: VALIDATION ERROR! ID attribute 'G4_Cu' is referenced but was never declared at line: 18539
G4GDML: VALIDATION ERROR! ID attribute 'G4_Ni' is referenced but was never declared at line: 18539
G4GDML: VALIDATION ERROR! ID attribute 'G4_Si' is referenced but was never declared at line: 18539
G4GDML: Reading definitions...
G4GDML: Reading materials...
G4GDML: Reading solids...
G4GDML: Reading structure...
G4GDML: Reading setup...
G4GDML: Reading 'CriostatoTest0606.gdml' done!
Stripping off GDML names of materials, solids and volumes ...

**************************************************************
 Geant4 version Name: geant4-10-04-patch-03    (8-February-2019)
                       Copyright : Geant4 Collaboration
                      References : NIM A 506 (2003), 250-303
                                 : IEEE-TNS 53 (2006), 270-278
                                 : NIM A 835 (2016), 186-225
                             WWW : http://geant4.org/
**************************************************************

1 - Defining DecayPhysics
2 - Defining RadioactiveDecayPhysics
3 - Defining Standard em
***** COMMAND NOT FOUND <<?xml version='1.0' encoding='ASCII'?>> *****

***** Batch is interrupted!! *****

How can fix it? And why does it not show the same for G01 example?

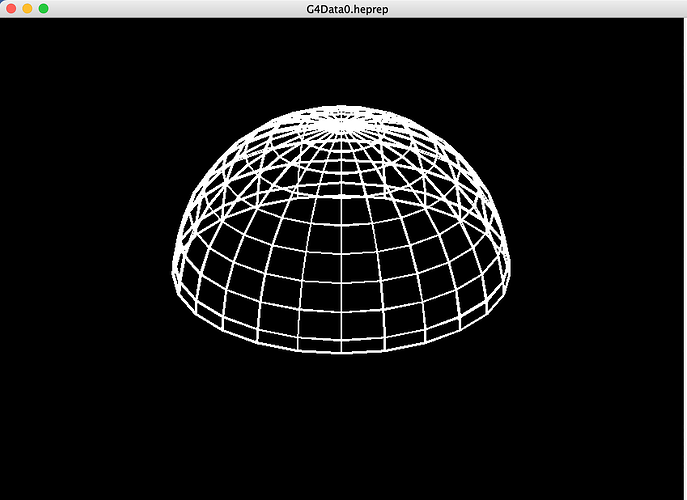

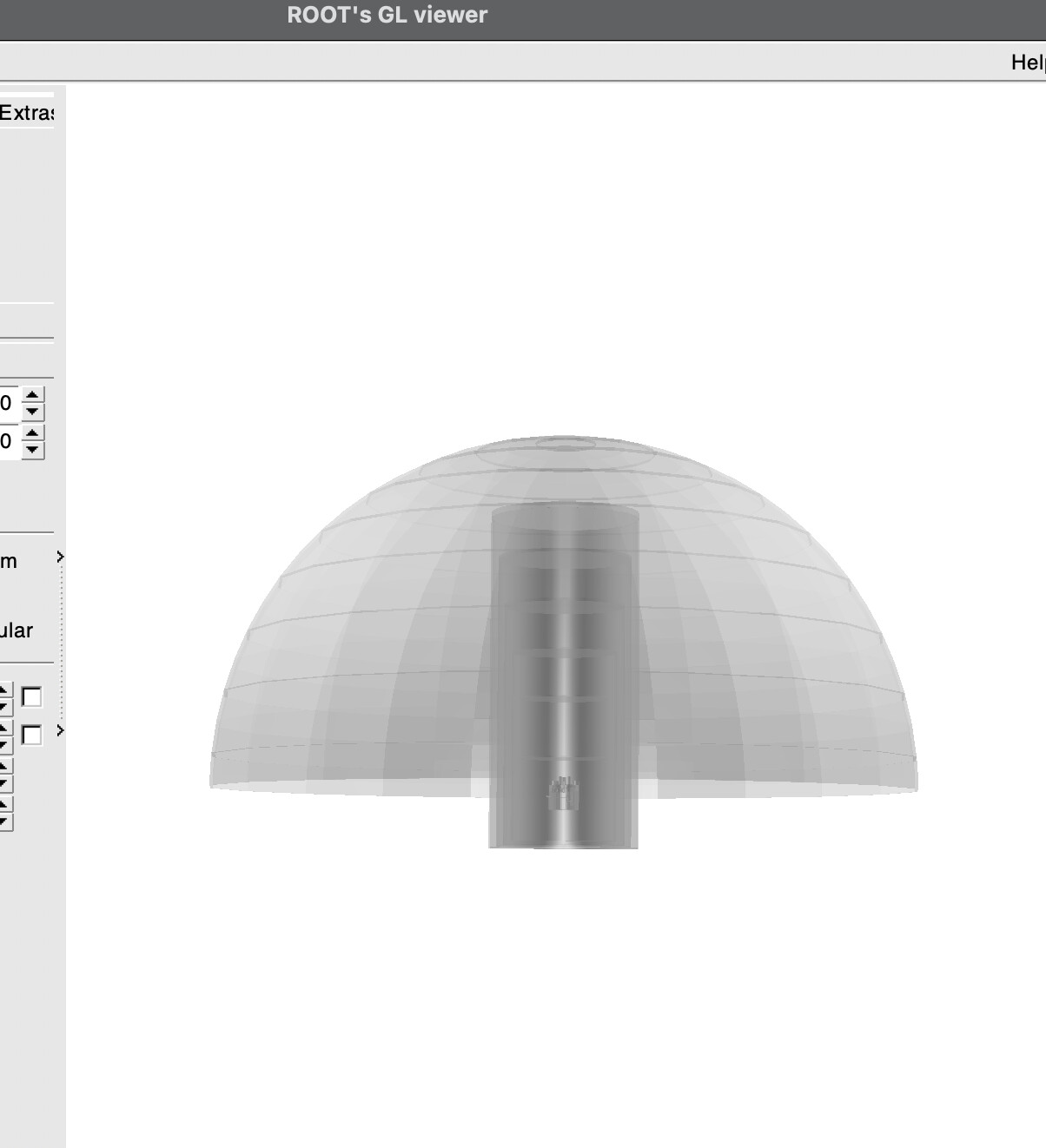

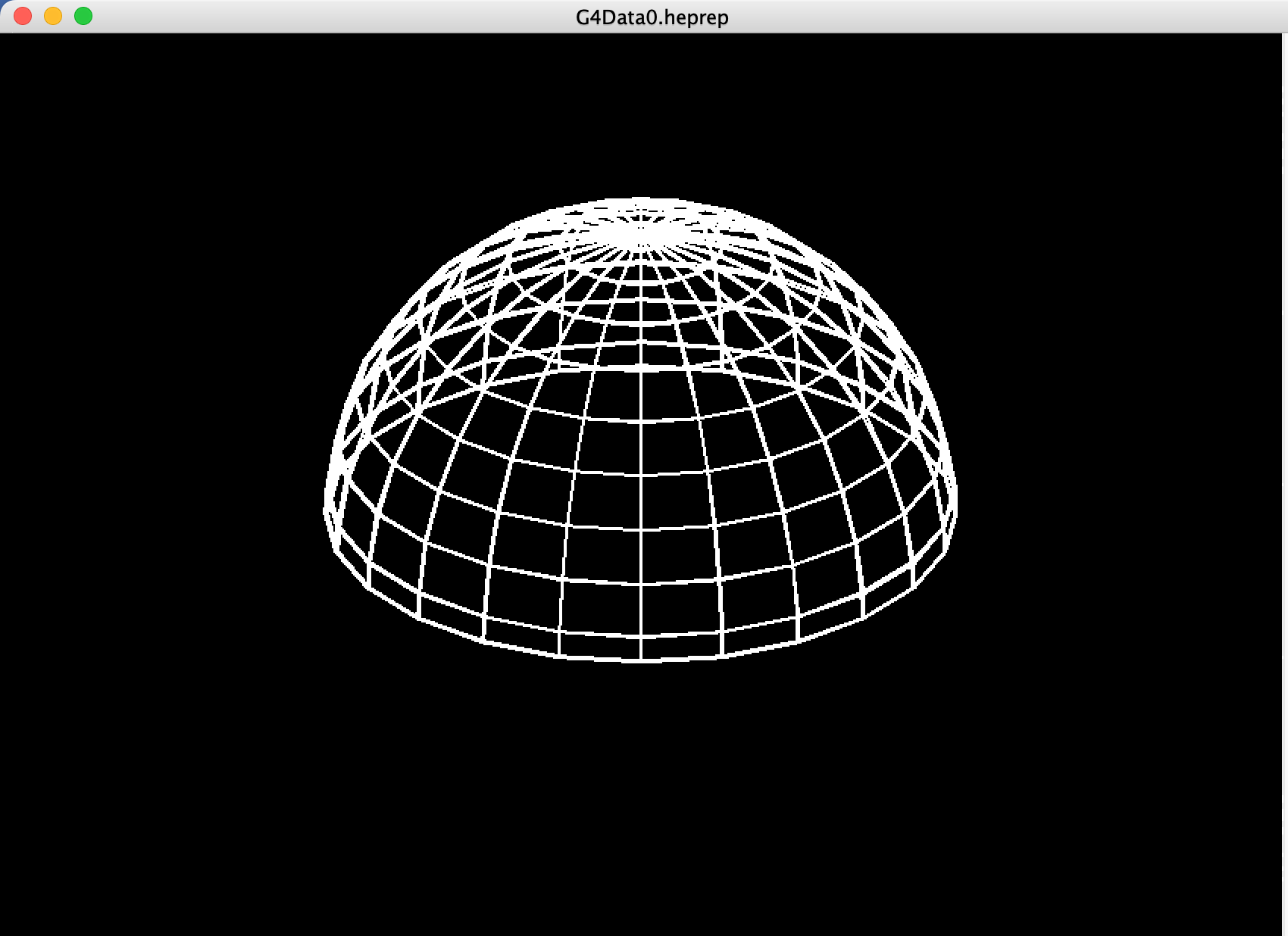

I’ve found also another problem: visualizing with Heprep the loading of my gdml both in G01 and G04 example, only a small amount of the geometry is seen by the visualizer. However when I tested my GDML file loading with root visualizer I’ve seen all the volumes rightfully loaded.
I can even see that the DetectorConstruction reads all the auxiliary informations of the other volumes:

Usage: gdml_det <intput_gdml_file:mandatory>

Available UI session types: [ GAG, tcsh, csh ]
G4GDML: Reading 'CriostatoTest0606.gdml'...
G4GDML: VALIDATION ERROR! ID attribute 'G4_BRASS' is referenced but was never declared at line: 18540
G4GDML: VALIDATION ERROR! ID attribute 'G4_Galactic' is referenced but was never declared at line: 18540
G4GDML: VALIDATION ERROR! ID attribute 'G4_Al' is referenced but was never declared at line: 18540
G4GDML: VALIDATION ERROR! ID attribute 'G4_Cu' is referenced but was never declared at line: 18540
G4GDML: VALIDATION ERROR! ID attribute 'G4_Ni' is referenced but was never declared at line: 18540
G4GDML: VALIDATION ERROR! ID attribute 'G4_Si' is referenced but was never declared at line: 18540
G4GDML: Reading definitions...
G4GDML: Reading materials...
G4GDML: Reading solids...
G4GDML: Reading structure...
G4GDML: Reading setup...
G4GDML: Reading 'CriostatoTest0606.gdml' done!
Stripping off GDML names of materials, solids and volumes ...

**************************************************************
 Geant4 version Name: geant4-10-04-patch-03    (8-February-2019)
                       Copyright : Geant4 Collaboration
                      References : NIM A 506 (2003), 250-303
                                 : IEEE-TNS 53 (2006), 270-278
                                 : NIM A 835 (2016), 186-225
                             WWW : http://geant4.org/
**************************************************************

<<< Geant4 Physics List simulation engine: FTFP_BERT 2.0

Found 69 volume(s) with auxiliary information.
