How to describe proton PhysicsList

Geant4 Version: 11.1.2
_Operating System:_Window 10
Compiler/Version: Visual Studio 2022
CMake Version: 3.27.4


Hello everyone,

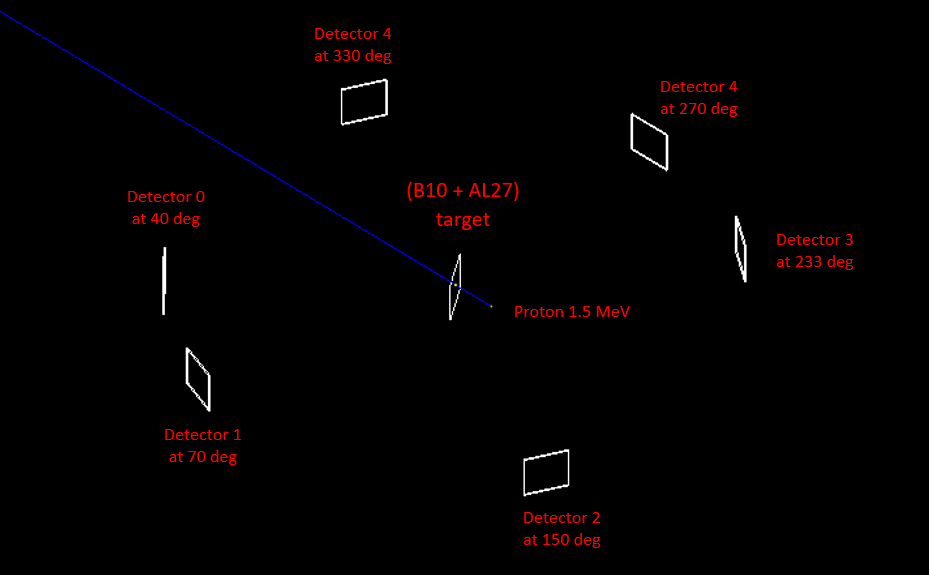

  • I’m simulating a nuclear physic experiment used a 1.5 MeV proton bombed a target (B10 + Al27). There are 6 detectors placed around target to detect particles emitted from proton interaction with the target. I used each detector to record energy deposition of each case particle (proton, alpha, Be7, B11, B10, gamma, and other particle).

  • I constructed my PhysicsList like “examples\extended\hadronic\Hadr01” example and run my simulation for 25 PhysicsList cases:

./sim ../macro/run_emstandard_opt0.mac >> run_emstandard_opt0.txt
./sim ../macro/run_emstandard_opt1.mac >> run_emstandard_opt1.txt
./sim ../macro/run_emstandard_opt2.mac >> run_emstandard_opt2.txt
./sim ../macro/run_emstandard_opt3.mac >> run_emstandard_opt3.txt
./sim ../macro/run_emstandard_opt4.mac >> run_emstandard_opt4.txt
./sim ../macro/run_emstandardGS.mac >> run_emstandardGS.txt
./sim ../macro/run_FTF_BIC.mac >> run_FTF_BIC.txt
./sim ../macro/run_FTFP_BERT_EMV.mac >> run_FTFP_BERT_EMV.txt
./sim ../macro/run_FTFP_BERT_EMX.mac >> run_FTFP_BERT_EMX.txt
./sim ../macro/run_FTFP_BERT_EMY.mac >> run_FTFP_BERT_EMY.txt
./sim ../macro/run_FTFP_BERT_EMZ.mac >> run_FTFP_BERT_EMZ.txt
./sim ../macro/run_FTFP_BERT_TRV.mac >> run_FTFP_BERT_TRV.txt
./sim ../macro/run_FTFP_BERT.mac >> run_FTFP_BERT.txt
./sim ../macro/run_QBBC.mac >> run_QBBC.txt
./sim ../macro/run_QGS_BIC.mac >> run_QGS_BIC.txt
./sim ../macro/run_QGSP_BERT_EMV.mac >> run_QGSP_BERT_EMV.txt
./sim ../macro/run_QGSP_BERT_EMX.mac >> run_QGSP_BERT_EMX.txt
./sim ../macro/run_QGSP_BERT_HP.mac >> run_QGSP_BERT_HP.txt
./sim ../macro/run_QGSP_BERT.mac >> run_QGSP_BERT.txt
./sim ../macro/run_QGSP_BIC_EMY.mac >> run_QGSP_BIC_EMY.txt
./sim ../macro/run_QGSP_BIC_HP.mac >> run_QGSP_BIC_HP.txt
./sim ../macro/run_QGSP_BIC_HP.mac >> run_QGSP_BIC_HP.txt
./sim ../macro/run_QGSP_BIC.mac >> run_QGSP_BIC.txt
./sim ../macro/run_QGSP_FTFP_BERT.mac >> run_QGSP_FTFP_BERT.txt
./sim ../macro/run_RadioactiveDecay.mac >> run_RadioactiveDecay.txt
  • Here is my PhysicsList class
//
// ********************************************************************
// * License and Disclaimer                                           *
// *                                                                  *
// * The  Geant4 software  is  copyright of the Copyright Holders  of *
// * the Geant4 Collaboration.  It is provided  under  the terms  and *
// * conditions of the Geant4 Software License,  included in the file *
// * LICENSE and available at  http://cern.ch/geant4/license .  These *
// * include a list of copyright holders.                             *
// *                                                                  *
// * Neither the authors of this software system, nor their employing *
// * institutes,nor the agencies providing financial support for this *
// * work  make  any representation or  warranty, express or implied, *
// * regarding  this  software system or assume any liability for its *
// * use.  Please see the license in the file  LICENSE  and URL above *
// * for the full disclaimer and the limitation of liability.         *
// *                                                                  *
// * This  code  implementation is the result of  the  scientific and *
// * technical work of the GEANT4 collaboration.                      *
// * By using,  copying,  modifying or  distributing the software (or *
// * any work based  on the software)  you  agree  to acknowledge its *
// * use  in  resulting  scientific  publications,  and indicate your *
// * acceptance of all terms of the Geant4 Software license.          *
// ********************************************************************
//
/// \file hadronic/Hadr01/src/PhysicsList.cc
/// \brief Implementation of the PhysicsList class
//
//
//
/////////////////////////////////////////////////////////////////////////
//
// PhysicsList
//
// Created: 31.04.2006 V.Ivanchenko
//
// Modified:
// 04.06.2006 Adoptation of Hadr01 (V.Ivanchenko)
// 26.04.2007 Physics according to 8.3 Physics List (V.Ivanchenko)
// 16.10.2012 Renamed used classes (A.Ribon)
//
////////////////////////////////////////////////////////////////////////
//

#include "PhysicsList.hh"
#include "PhysicsListMessenger.hh"

#include "G4DecayPhysics.hh"
#include "G4EmStandardPhysics.hh"
#include "G4EmStandardPhysics_option1.hh"
#include "G4EmStandardPhysics_option2.hh"
#include "G4EmStandardPhysics_option3.hh"
#include "G4EmStandardPhysics_option4.hh"
#include "G4EmStandardPhysicsGS.hh"
#include "G4EmLivermorePhysics.hh"
#include "G4EmPenelopePhysics.hh"
#include "G4HadronElasticPhysics.hh"
#include "G4HadronElasticPhysicsXS.hh"
#include "G4HadronElasticPhysicsHP.hh"
#include "G4HadronHElasticPhysics.hh"
#include "G4NeutronTrackingCut.hh"
#include "G4NeutronCrossSectionXS.hh"
#include "G4StoppingPhysics.hh"
#include "G4IonBinaryCascadePhysics.hh"
#include "G4IonPhysics.hh"
#include "G4IonPhysicsXS.hh"
#include "G4IonElasticPhysics.hh"
#include "G4EmExtraPhysics.hh"
#include "G4EmParameters.hh"
#include "G4PhysListFactoryMessenger.hh"

#include "G4HadronPhysicsFTFP_BERT.hh"
#include "G4HadronPhysicsFTFP_BERT_HP.hh"
#include "G4HadronPhysicsFTFP_BERT_TRV.hh"
#include "G4HadronPhysicsFTF_BIC.hh"
#include "G4HadronInelasticQBBC.hh"
#include "G4HadronPhysicsQGSP_BERT.hh"
#include "G4HadronPhysicsQGSP_BERT_HP.hh"
#include "G4HadronPhysicsQGSP_BIC.hh"
#include "G4HadronPhysicsQGSP_BIC_HP.hh"
#include "G4HadronPhysicsQGSP_FTFP_BERT.hh"
#include "G4HadronPhysicsQGS_BIC.hh"
#include "G4RadioactiveDecayPhysics.hh"

#include "G4ProcessManager.hh"
#include "G4ParticleTypes.hh"
#include "G4ParticleTable.hh"
#include "G4Gamma.hh"
#include "G4Electron.hh"
#include "G4Positron.hh"
#include "G4Proton.hh"

#include "G4SystemOfUnits.hh"

//....oooOO0OOooo........oooOO0OOooo........oooOO0OOooo........oooOO0OOooo.....

PhysicsList::PhysicsList() : G4VModularPhysicsList()
{
  SetDefaultCutValue(0.7*CLHEP::mm);

  verboseLevel = 1;

  fMessenger = new PhysicsListMessenger(this);
  fFactMessenger = new G4PhysListFactoryMessenger(this);

  // Particles
  fParticleList = new G4DecayPhysics(verboseLevel);

  // EM physics
  fEmPhysicsList = new G4EmStandardPhysics(verboseLevel);
}

//....oooOO0OOooo........oooOO0OOooo........oooOO0OOooo........oooOO0OOooo.....

PhysicsList::~PhysicsList()
{
  delete fMessenger;
  delete fParticleList;
  delete fEmPhysicsList;
  for(size_t i=0; i<fHadronPhys.size(); i++) {
    delete fHadronPhys[i];
  }
}

//....oooOO0OOooo........oooOO0OOooo........oooOO0OOooo........oooOO0OOooo.....

void PhysicsList::ConstructParticle()
{
  fParticleList->ConstructParticle();
}

//....oooOO0OOooo........oooOO0OOooo........oooOO0OOooo........oooOO0OOooo.....

void PhysicsList::ConstructProcess()
{
  AddTransportation();
  fEmPhysicsList->ConstructProcess();
  fParticleList->ConstructProcess();
  for(size_t i=0; i<fHadronPhys.size(); i++) {
    fHadronPhys[i]->ConstructProcess();
  }
}

//....oooOO0OOooo........oooOO0OOooo........oooOO0OOooo........oooOO0OOooo.....

void PhysicsList::AddPhysicsList(const G4String& name)
{
  if (verboseLevel>0) {
    G4cout << "PhysicsList::AddPhysicsList: <" << name << ">" << G4endl;
  }
  if (name == "emstandard_opt0") {

    delete fEmPhysicsList;
    fEmPhysicsList = new G4EmStandardPhysics(verboseLevel);

  } else if (name == "emstandard_opt1") {

    delete fEmPhysicsList;
    fEmPhysicsList = new G4EmStandardPhysics_option1(verboseLevel);

  } else if (name == "emstandard_opt2") {

    delete fEmPhysicsList;
    fEmPhysicsList = new G4EmStandardPhysics_option2(verboseLevel);

  } else if (name == "emstandard_opt3") {

    delete fEmPhysicsList;
    fEmPhysicsList = new G4EmStandardPhysics_option3(verboseLevel);

  } else if (name == "emstandard_opt4") {

    delete fEmPhysicsList;
    fEmPhysicsList = new G4EmStandardPhysics_option4(verboseLevel);

  } else if (name == "emstandardGS") {

    delete fEmPhysicsList;
    fEmPhysicsList = new G4EmStandardPhysicsGS(verboseLevel);

  } else if (name == "FTFP_BERT_EMV") {

    AddPhysicsList("FTFP_BERT");
    AddPhysicsList("emstandard_opt1");

  } else if (name == "FTFP_BERT_EMX") {

    AddPhysicsList("FTFP_BERT");
    AddPhysicsList("emstandard_opt2");

  } else if (name == "FTFP_BERT_EMY") {

    AddPhysicsList("FTFP_BERT");
    AddPhysicsList("emstandard_opt3");

  } else if (name == "FTFP_BERT_EMZ") {

    AddPhysicsList("FTFP_BERT");
    AddPhysicsList("emstandard_opt4");

  } else if (name == "FTFP_BERT") {

    SetBuilderList0(false);
    fHadronPhys.push_back( new G4HadronPhysicsFTFP_BERT(verboseLevel));

  } else if (name == "FTFP_BERT_TRV") {

    AddPhysicsList("emstandardGS");
    SetBuilderList1(false);
    fHadronPhys.push_back( new G4HadronPhysicsFTFP_BERT_TRV(verboseLevel));

  } else if (name == "FTF_BIC") {

    SetBuilderList0(false);
    fHadronPhys.push_back( new G4HadronPhysicsFTF_BIC(verboseLevel));

  } else if (name == "QBBC") {

    AddPhysicsList("emstandard_opt0");
    SetBuilderList2();
    fHadronPhys.push_back( new G4HadronInelasticQBBC(verboseLevel));

  } else if (name == "QGSP_BERT") {

    SetBuilderList0(false);
    fHadronPhys.push_back( new G4HadronPhysicsQGSP_BERT(verboseLevel));

  } else if (name == "QGSP_FTFP_BERT") {

    SetBuilderList0(false);
    fHadronPhys.push_back( new G4HadronPhysicsQGSP_FTFP_BERT(verboseLevel));

  } else if (name == "QGSP_FTFP_BERT_EMV") {

    AddPhysicsList("QGSP_FTFP_BERT");
    AddPhysicsList("emstandard_opt1");

  } else if (name == "QGSP_BERT_EMV") {

    AddPhysicsList("QGSP_BERT");
    AddPhysicsList("emstandard_opt1");

  } else if (name == "QGSP_BERT_EMX") {

    AddPhysicsList("QGSP_BERT");
    AddPhysicsList("emstandard_opt2");

  } else if (name == "QGSP_BERT_HP") {

    SetBuilderList0(true);
    fHadronPhys.push_back( new G4HadronPhysicsQGSP_BERT_HP(verboseLevel));
    AddPhysicsList("RadioactiveDecay");

  } else if (name == "QGSP_BIC") {

    SetBuilderList0(false);
    fHadronPhys.push_back( new G4HadronPhysicsQGSP_BIC(verboseLevel));
    fHadronPhys.push_back( new G4IonElasticPhysics(verboseLevel));

  } else if (name == "QGSP_BIC_EMY") {

    AddPhysicsList("QGSP_BIC");
    AddPhysicsList("emstandard_opt3");

  } else if (name == "QGS_BIC") {

    SetBuilderList0(false);
    fHadronPhys.push_back( new G4HadronPhysicsQGS_BIC(verboseLevel));

  } else if (name == "QGSP_BIC_HP") {

    SetBuilderList0(true);
    fHadronPhys.push_back( new G4HadronPhysicsQGSP_BIC_HP(verboseLevel));
    AddPhysicsList("RadioactiveDecay");

  } else if (name == "RadioactiveDecay") {

    fHadronPhys.push_back( new G4RadioactiveDecayPhysics(verboseLevel));

  } else {

    G4cout << "PhysicsList::AddPhysicsList: <" << name << ">"
           << " is not defined"
           << G4endl;
  }
}

//....oooOO0OOooo........oooOO0OOooo........oooOO0OOooo........oooOO0OOooo.....

void PhysicsList::SetBuilderList0(G4bool flagHP)
{
  fHadronPhys.push_back( new G4EmExtraPhysics(verboseLevel));
  if(flagHP) {
    fHadronPhys.push_back( new G4HadronElasticPhysicsHP(verboseLevel) );
  } else {
    fHadronPhys.push_back( new G4HadronElasticPhysics(verboseLevel) );
  }
  fHadronPhys.push_back( new G4StoppingPhysics(verboseLevel));
  fHadronPhys.push_back( new G4IonPhysics(verboseLevel));
  if(!flagHP) {
    fHadronPhys.push_back( new G4NeutronTrackingCut(verboseLevel));
  }
}

//....oooOO0OOooo........oooOO0OOooo........oooOO0OOooo........oooOO0OOooo.....

void PhysicsList::SetBuilderList1(G4bool flagHP)
{
  fHadronPhys.push_back( new G4EmExtraPhysics(verboseLevel));
  if(flagHP) {
    fHadronPhys.push_back( new G4HadronElasticPhysicsHP(verboseLevel) );
  } else {
    fHadronPhys.push_back( new G4HadronHElasticPhysics(verboseLevel) );
  }
  fHadronPhys.push_back( new G4StoppingPhysics(verboseLevel));
  fHadronPhys.push_back( new G4IonPhysics(verboseLevel));
  if(!flagHP) {
    fHadronPhys.push_back( new G4NeutronTrackingCut(verboseLevel));
  }
}

//....oooOO0OOooo........oooOO0OOooo........oooOO0OOooo........oooOO0OOooo.....

void PhysicsList::SetBuilderList2()
{
  fHadronPhys.push_back( new G4EmExtraPhysics(verboseLevel));
  fHadronPhys.push_back( new G4HadronElasticPhysicsXS(verboseLevel) );
  fHadronPhys.push_back( new G4StoppingPhysics(verboseLevel));
  fHadronPhys.push_back( new G4IonPhysicsXS(verboseLevel));
  fHadronPhys.push_back( new G4IonElasticPhysics(verboseLevel));
  fHadronPhys.push_back( new G4NeutronTrackingCut(verboseLevel));
}

//....oooOO0OOooo........oooOO0OOooo........oooOO0OOooo........oooOO0OOooo.....

void PhysicsList::List()
{
  G4cout << "### PhysicsLists available: FTFP_BERT FTFP_BERT_EMV "
         << "FTFP_BERT_EMX FTFP_BERT_EMZ FTFP_BERT_TRV"
         << G4endl;
  G4cout << "                            FTF_BIC QBBC QGSP_BERT "
         << "QGSP_BERT_EMV QGSP_BERT_EMX"
         << G4endl;
  G4cout << "                            QGSP_BERT_HP QGSP_FTFP_BERT "
         << "QGSP_FTFP_BERT_EMV"
         << G4endl;
  G4cout << "                            QGS_BIC QGSP_BIC QGSP_BIC_EMY "
         << "QGSP_BIC_HP"
         << G4endl;
}

//....oooOO0OOooo........oooOO0OOooo........oooOO0OOooo........oooOO0OOooo......
  • The results:I exported results to root files. But I just got some pretty bad results. I found that only with the QBBC library are the probes able to detect alpha. The table below summarizes my results.
Physics Lists Det0 Det1 Det2 Det3 Det4 Det5
emstandard_opt0 proton proton proton proton proton proton, B11, other
emstandard_opt1 proton proton proton proton proton gamma, proton
emstandard_opt2 proton, other proton proton proton proton proton, other
emstandard_opt3 proton proton proton proton proton proton
emstandard_opt4 proton proton proton proton proton proton, B11, other
emstandardGS proton proton proton proton proton proton
FTFP_BERT_EMV proton, other proton, other proton proton proton proton, B11
FTFP_BERT_EMX proton proton proton proton proton proton, gamma, B11
FTFP_BERT_EMY proton, B11 proton proton proton proton proton, gamma
FTFP_BERT_EMZ proton, gamma proton proton proton proton proton, gamma, other
FTFP_BERT proton, gamma proton, B11 proton proton proton proton, gamma, B11, other
FTFP_BERT_TRV proton proton proton proton proton proton, gamma, B11, other
FTF_BIC proton, gamma, other proton, gamma proton proton proton proton, gamma
QBBC proton, alpha, gamma proton, alpha proton, alpha proton, alpha proton, alpha proton, alpha, gamma, B11
QGSP_BERT proton, gamma, other proton, gamma proton proton proton proton, gamma
QGSP_FTFP_BERT proton, gamma proton, gamma proton proton proton proton, gamma, B11
QGSP_BERT_EMV proton, gamma, B11, other proton proton proton proton proton, gamma, other
QGSP_BERT_EMX proton, gamma, B11 proton proton proton proton proton, gamma, B11
QGSP_BERT_HP proton, other proton - proton proton proton, gamma, B11, other
QGSP_BIC proton, gamma proton proton proton proton proton, gamma
QGSP_BIC_EMY proton, gamma proton proton proton proton proton, gamma
QGS_BIC proton, gamma, other proton proton proton proton proton, gamma
QGSP_BIC_HP proton, gamma proton proton proton proton proton, gamma
RadioactiveDecay proton proton proton proton proton proton, other

out_QBBC.root.txt (192.9 KB)
Which physics library should I use to simulate this problem? The above results are all run with 1E9 events. The detection results are still too low.
Should I use UserPhysicsList or not? And how to build it. I’m not someone who understands physics very deeply. Can someone help me?

Thank you in advance.

1 Like

Hello,

Geant4 recommendation include following steps to choose physics

  1. try out to prepare simulation using one of reference Physics Lists. The current default is FTFP_BERT, which is applicable as for high energy physics and for other applications. There are alternatives for more accurate simulation FTFP_BERT_HP (precise neutrons), FTFP_BERT_EMZ (precise electromagnetic physics), QGSP_BIC_HP (recommended for medical applications), QBBC, Shielding. There is no need to run all available combinations. In many cases results will be identical.

  2. The simplest way to instantiate any Physics List is shown in $G4INSTALL/examples/extended/hadronic/Hadr00/Hadr00.cc - it is only few lines of code much more adequate than long class shown.

  3. To make a correct choice of Physics List, one has to understand what is the task, what accuracy is required, and prepare a test case for the problem. This will allow to optimize configuration of physics.

  4. There will be needed also to customize parameters, first of all “cut in range”.

  5. only after there is sense to run high statistics.

VI
